COTS DC-DC Converters

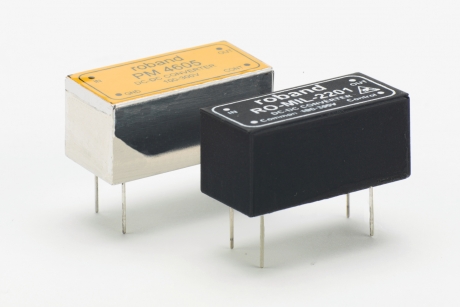

RO-MIL-2201 100-300V O/P

15V Input
100-300V Output

RO-MIL-2201 is a voltage controlled high voltage variable output regulator. Its compact size is achieved by applying innovative packaging techniques proven in our many avionic programmes. This device is ideal for high voltage basing requirements.

  • Part No.
  • Input
  • Output
  • RO-MIL-2201
  • 15VDC
  • 100-300VDC Programmable
  • Dimensions
  • 27.2x12.6x12.5mm
  • Weight
  • 12g Max
  • Operating Temperature
  • -40°C to +85°C


RO-MIL-2201 is a voltage controlled high voltage variable output regulator. Its compact size is achieved by applying innovative packaging techniques proven in our many avionic programmes. This device is ideal for high voltage basing requirements.

An integral 5kΩ output resistor simultaneously reduces noise and peak current. The unit also includes active overload and short circuit protection.

The unit is an encapsulated assembly housed within a tin plated brass enclosure to ensure mechanical integrity and RF screening.

  • Parameter
  • Value
  • Input
  • Nominal Voltage
  • 15VDC
  • Voltage Range
  • 14-16VDC
  • Output
  • Voltage
  • 100-300VDC Programmable
  • Current
  • 0.5mA
  • Environmental
  • Vibration
  • 10g
  • Altitude
  • 40,000ft
  • MTBF
  • 119,000Hrs AIF

Optional features:

  • extended input range
  • alternative input setting
  • custom set output voltage and/or current limit
  • alternative unit finish e.g. black anodised

Please contact us to discuss your requirment.

As with all Roband products, the RO-MIL series is fully manufactured onsite in the UK.
